Economical forming without ties, for all radii, also with special formwork<br/>

GRV Articulated Waler Circular Formwork

For forming circular structures without the use of ties


With the GRV Articulated waler Circular Formwork, the external ring tension force and the internal compression force are transferred by the closed ring of walers. Consequently, the system allows circular structures to be realized without tie points. This results in substantial savings, for example, the construction of containers whereby the alternative would be watertight anchor points.


GRV Articulated Waler Circular Formwork in action

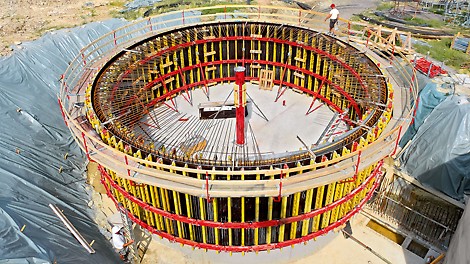

  • The use of the GRV for larger radii is especially cost-effective when several identical circular structures are to be concreted one after the other.
    Forming without ties

    due to the closed ring of walers.

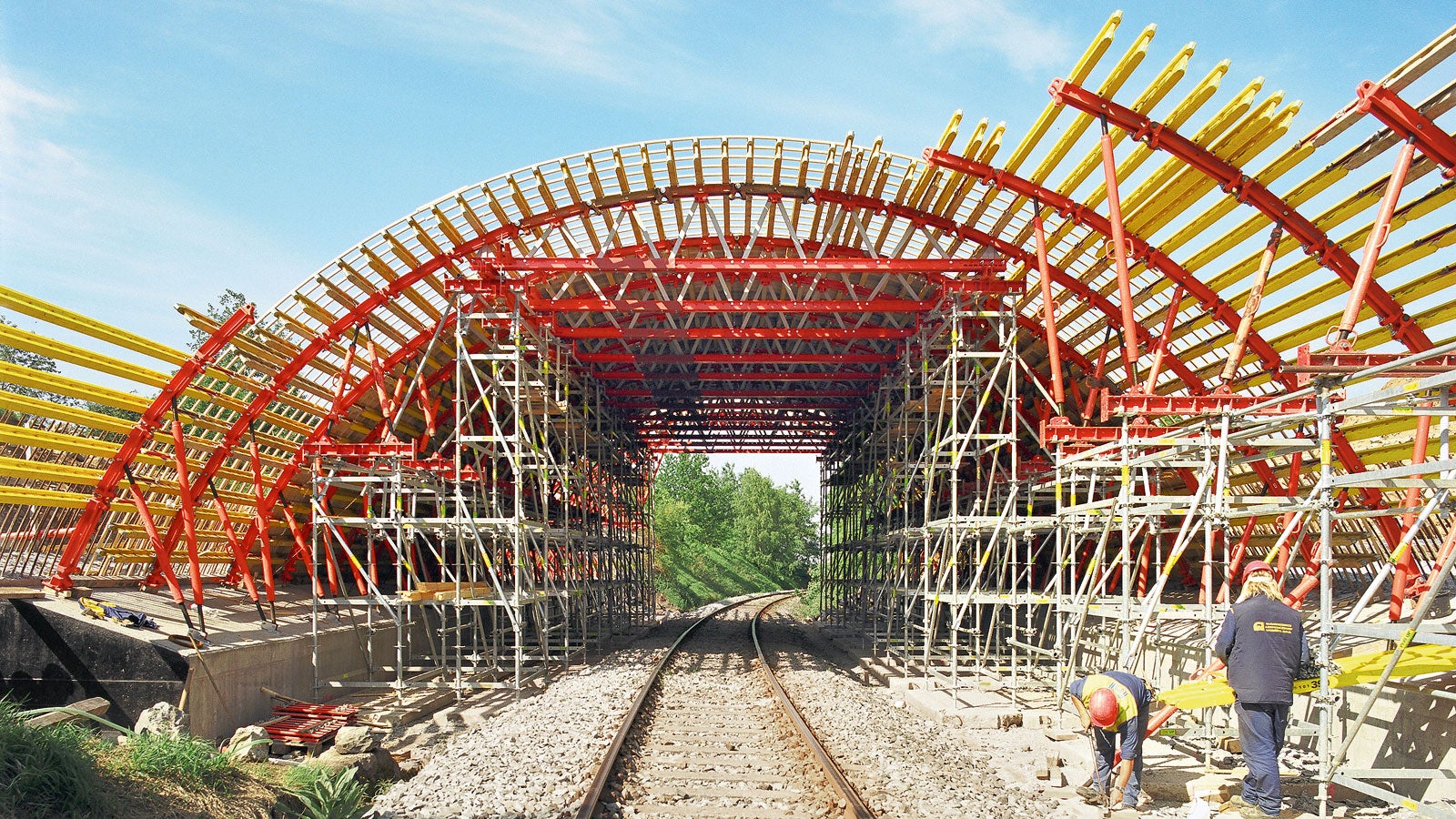

  • The GRV Circular Wall Formwork – here combined with steel walers, formwork girders and shoring – can also be used for arched bridges.<br/>
    Versatile in use

    for containers or a wide range of arched bridges.

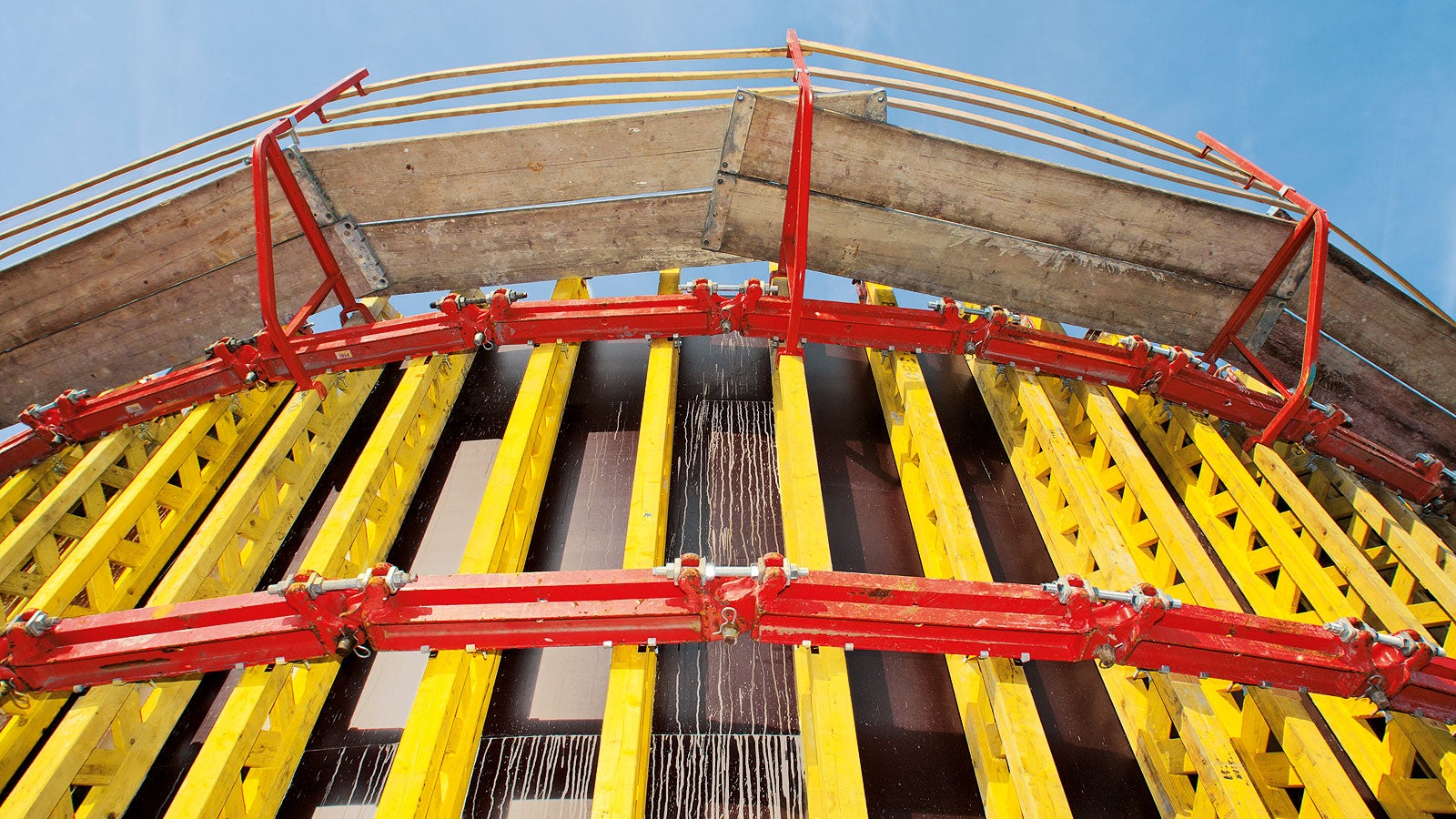

  • GRV can be used for all radii. By means of the articulated connections of the GRV walers, small radii of 0.60 m can also be shuttered.<br/>
    Continuously adjustable

    for all internal radii greater than 0.90 m.
