PERI UP Flex Stair 100 / 125 in action
-

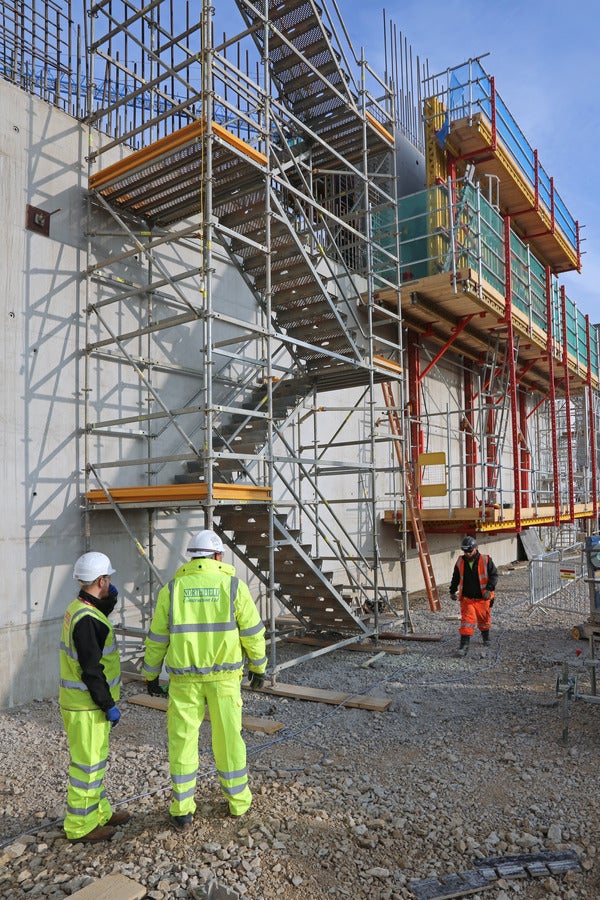

High load-bearing capacityDesigned for loads of 3.00 kN/m² for a run of staircase and landing of 20 m.
Project: Rolls Royce
-
Erection without the use of toolsThe lightweight individual steps are quickly installed: they interlock during assembly and secure automatically.

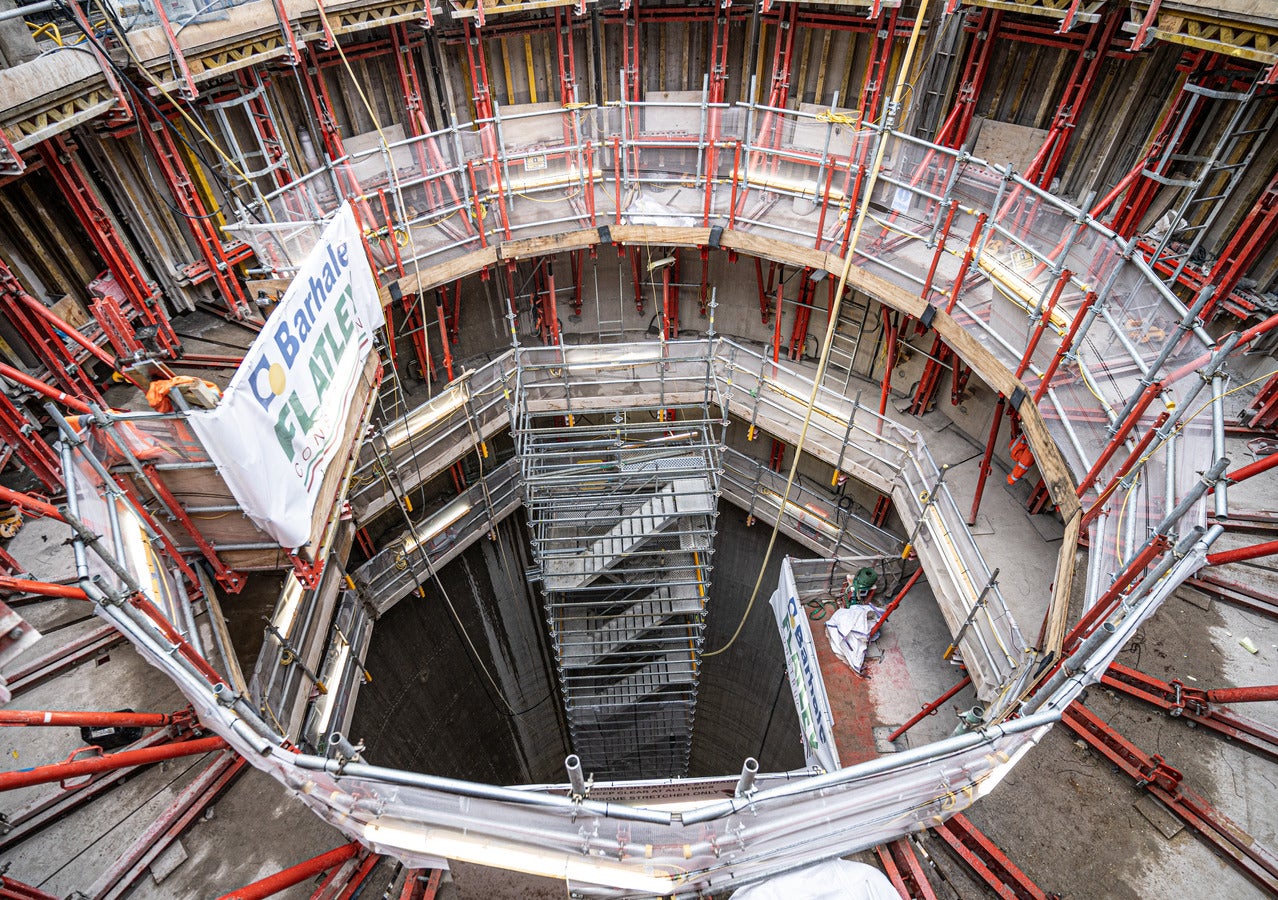

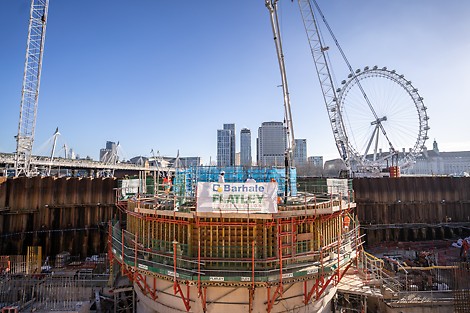

Project: Thames Valley, Victoria Embankment
-

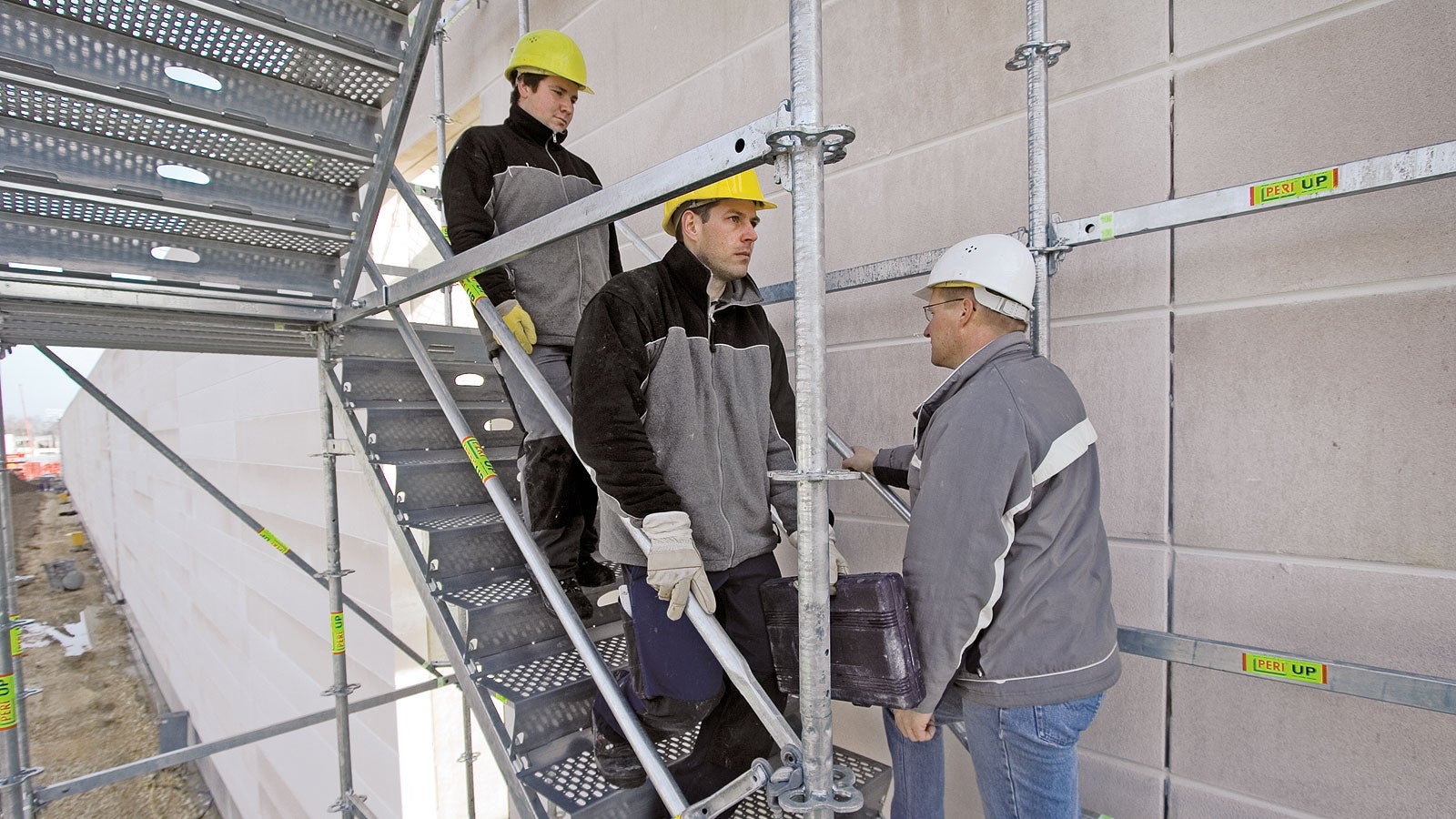

With conveniently-sized widthsSufficient space for site personnel to pass each other, transporting materials and evacuating injured persons.
Product Data Sheet
Scaffold type
Scaffolding Stairs
Dimensions
Floor plans: Stair tower with steps 100 cm: 2.00 mx 4.50 m I 125 cm: 2.50 mx 5.00 m
Type of use
Access technology
Body heights
According to the rules: up to 50 meters (steel 100) up to 40 meters (steel 125)
Scaffolding grid
Metric
Type of pavement
Steel
Structure principle
The next step is firmly connected to the previous step by inserting and turning
Approval
Standard design according to EN 12810
Norm
DIN EN 12810 and 12811; load class 1 to 4 (0.75 kN/m² - 3.00 kN/m²); Load class 1 to 6 (0.75 kN/m² - 6.00 kN/m²)
Permissible load
3.0 kN/m²
Other
Adjustments to the building: 1.0 m height adjustments in the tower Flexible height adjustments via clamp rosette and bolt
Compatible with
PERI UP scaffolding construction kit, VARIOKIT engineering construction kit
Other
Horizontal ledger can be mounted in advance; Gravity Lock secures ledgers as soon as they are inserted into the scaffolding node; integrated pad protection; Use of standard handles with pressed-in tubular pins
