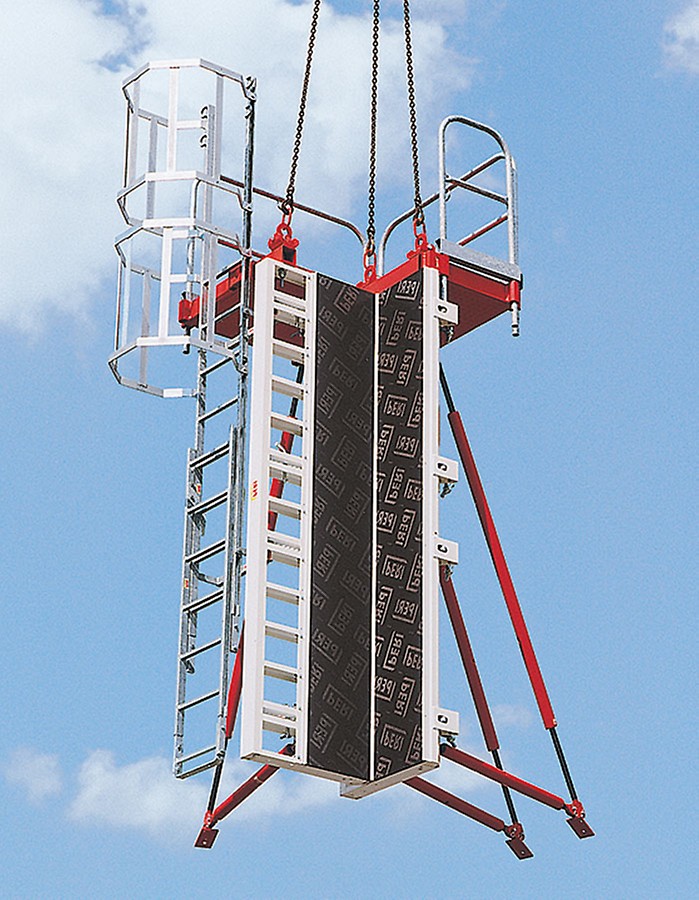

RAPID in action
-
For architectural concrete surfaces without any impressions
with freely-selectable, clamped formlining. Also for sharp-edged column cross-sections with suitably milled formlining.
-
Fast basic assembly
due to lightweight aluminium panels along with a simple clamping principle for the fixing of formlining.
Product Data Sheet
System type
Column Formwork
Dimensions
Element heights: 0,60 m | 2,10 m | 3,00 m,
Realizable column cross sections: 20 cm x 20 cm to 60 cm x 60 cm with sharp edges up to 58 x 58 cm, oversized cross-sections 85 cm x 85 cm - 130 cm x 130 cm,,
Realizable column heights: 2.10 m to 8.10 m in the standard version
Fresh concrete pressure
120 kN/m²
Material
Aluminium
Formlining
21mm for pillars with chamfer, 30mm for sharp-edged pillars
Interested in using RAPID for your project?
Call us on 01788 861600 to discuss your requirements further.
