![TRIO Column Formwork TRIO Column Formwork: Elements for walls and columns, cross-sections up to 75 cm x 75 cm](https://cdn.peri.cloud/.imaging/mWide/dam/e9f1bbd9-5a8d-42c9-bdf5-0c92e28423bc/71920/trio-column-formwork.jpg)
TRIO Column Formwork in action
-
Easy and simple connection
of extended panels at the joints with the proven BFD coupler.
-

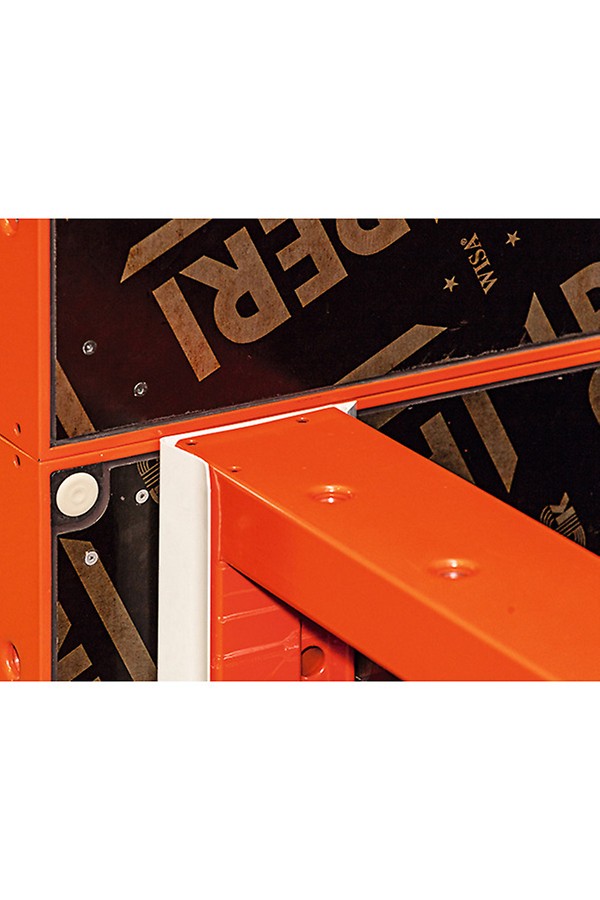

No nailing of chamfer strips
due to the clamping mechanism and PERI chamfer strip.
-

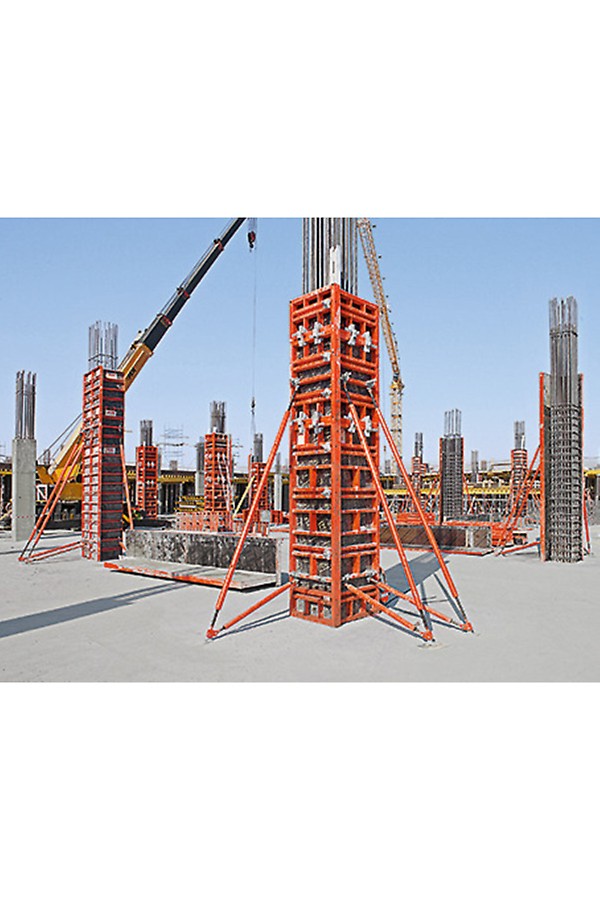

High number of re-uses
through the robust design of the panels.
Product Data Sheet
System type
Column Formwork
Dimensions
Realizable column cross sections: 20 cm x 20 cm to 75 cm x 75 cm,
Realizable column shapes: Square, rectangular,
Realizable column heights: 2.70 m to 8.10 m in the standard version,,
Element heights: 0.60 m | 1.20m | 2.70 m
Fresh concrete pressure
100kN/m²
Anti-corrosion and surface coating
Powder coating of the element frames prevents concrete from sticking and makes cleaning easier.
Safety
Concreting platform including ladder access and safety cage
